Flovv-e Reactive Injection System (Pre-order)
SKU: NVT-DV-FLVE-01
- Technical summary
- Mix ratio (A:B):Adjustable, up to 2:1
- Max. viscosity:5,000 cP
- Capacity:2 gallons / 8 kg
- Delivery:Pre-order · ~2 months
List price: $5,499.00
$4,399.00
(VAT-exempt export price)
Unit Price: $4,399.00Total (1): $4,399.00
Special pricing applies to multi-unit and corporate orders.
- Secure payment via PayTR
- Fast worldwide shipping
- Expert technical support
Pre-order item; delivery time is an estimate. Shipping is calculated at checkout based on your address.
Corporate purchase, custom application or bulk order? Talk to our engineer.
Which Flovv is right for you?
Capacity, materials and delivery for all four machines, side by side.
- Capacity
- Interchangeable tanks
- Materials
- PU rigid / flexible / foam, silicone
- Mix ratio (A:B)
- Adjustable, up to 2:1
- Max. viscosity
- 5,000 cP
- Pre-conditioning
- No
- Vacuum degassing
- No
- Integrated 3D printer
- No
- Thin-wall casting
- No
- Format
- Desktop
- Delivery
- In stock · 24h
- Price
- $1,499
- Capacity
- 2 gallons / 8 kg
- Materials
- PU rigid / flexible / foam, silicone + Epoxy
- Mix ratio (A:B)
- Adjustable, up to 10:1
- Max. viscosity
- 15,000 cP
- Pre-conditioning
- Yes
- Vacuum degassing
- Yes
- Integrated 3D printer
- No
- Thin-wall casting
- Yes
- Format
- Desktop
- Delivery
- Pre-order ~4 mo
- Price
- $4,399
- Capacity
- 2 gallons / 8 kg
- Materials
- PU rigid / flexible / foam, silicone
- Mix ratio (A:B)
- Adjustable, up to 2:1
- Max. viscosity
- 5,000 cP
- Pre-conditioning
- No
- Vacuum degassing
- No
- Integrated 3D printer
- Yes
- Thin-wall casting
- No
- Format
- Desktop
- Delivery
- Pre-order ~2 mo
- Price
- $4,399
- Capacity
- 50 kg (A+B)
- Materials
- PU rigid / flexible / foam, silicone + Epoxy
- Mix ratio (A:B)
- Adjustable, up to 3:1
- Max. viscosity
- 10,000 cP
- Pre-conditioning
- Yes
- Vacuum degassing
- Yes
- Integrated 3D printer
- No
- Thin-wall casting
- Yes
- Format
- Industrial
- Delivery
- Pre-order ~5 mo
- Price
- $7,572
| Model | Flovv: Injection System for 3D Printers | Flovv Pro Reactive Injection System | Flovv-e Reactive Injection System | Flovv Industrial Reactive Injection System |
|---|---|---|---|---|
| Capacity | Interchangeable tanks | 2 gallons / 8 kg | 2 gallons / 8 kg | 50 kg (A+B) |
| Materials | PU rigid / flexible / foam, silicone | PU rigid / flexible / foam, silicone + Epoxy | PU rigid / flexible / foam, silicone | PU rigid / flexible / foam, silicone + Epoxy |
| Mix ratio (A:B) | Adjustable, up to 2:1 | Adjustable, up to 10:1 | Adjustable, up to 2:1 | Adjustable, up to 3:1 |
| Max. viscosity | 5,000 cP | 15,000 cP | 5,000 cP | 10,000 cP |
| Pre-conditioning | No | Yes | No | Yes |
| Vacuum degassing | No | Yes | No | Yes |
| Integrated 3D printer | No | No | Yes | No |
| Thin-wall casting | No | Yes | No | Yes |
| Format | Desktop | Desktop | Desktop | Industrial |
| Delivery | In stock · 24h | Pre-order ~4 mo | Pre-order ~2 mo | Pre-order ~5 mo |
| Price | $1,499 | $4,399 | $4,399 | $7,572 |
Description
Flovv-e combines all of Flovv's reactive injection capabilities with an industrial mold-printing 3D printer in a single machine. Flovv casts parts by injecting polyurethane into 3D-printed molds; Flovv-e also includes the printer that makes those molds — the entire workflow from design to finished part happens on one device.
How It Works
Load your model, let Flovv-e print the mold, then let the integrated injection system mix the A-B components at the nozzle in precise ratio and inject into the mold. Get full-density, durable polyurethane parts in minutes — no separate printer, no separate injection unit, no hand mixing.

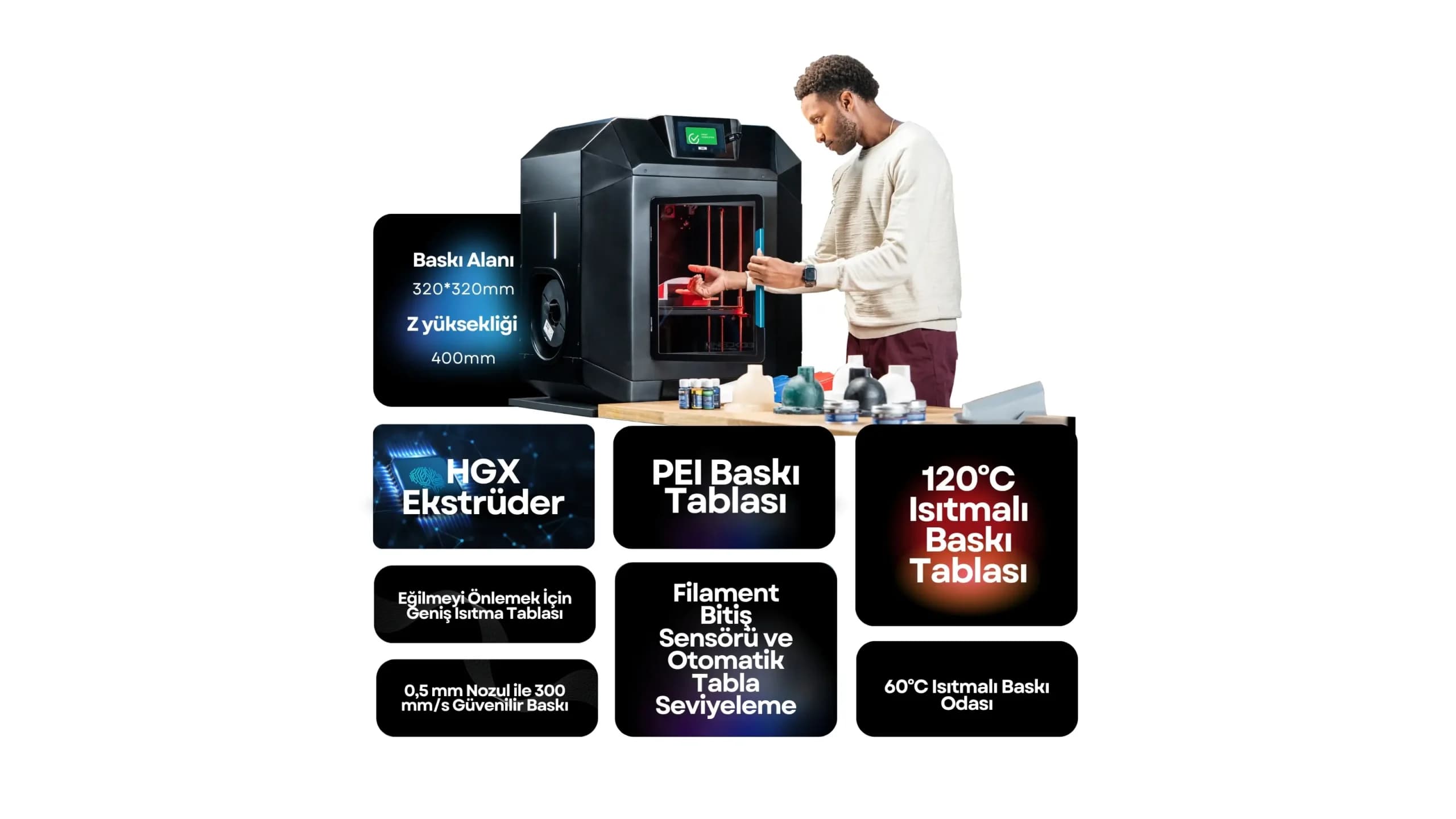

3D Printer Specifications
- Build area: 320 × 320 mm, Z height: 400 mm
- HGX extruder, reliable 300 mm/s printing with a 0.5 mm nozzle
- PEI build plate, 120°C heated bed with a large heating surface to prevent warping
- 60°C heated chamber — prevents distortion on large molds
- Filament runout sensor and automatic bed leveling

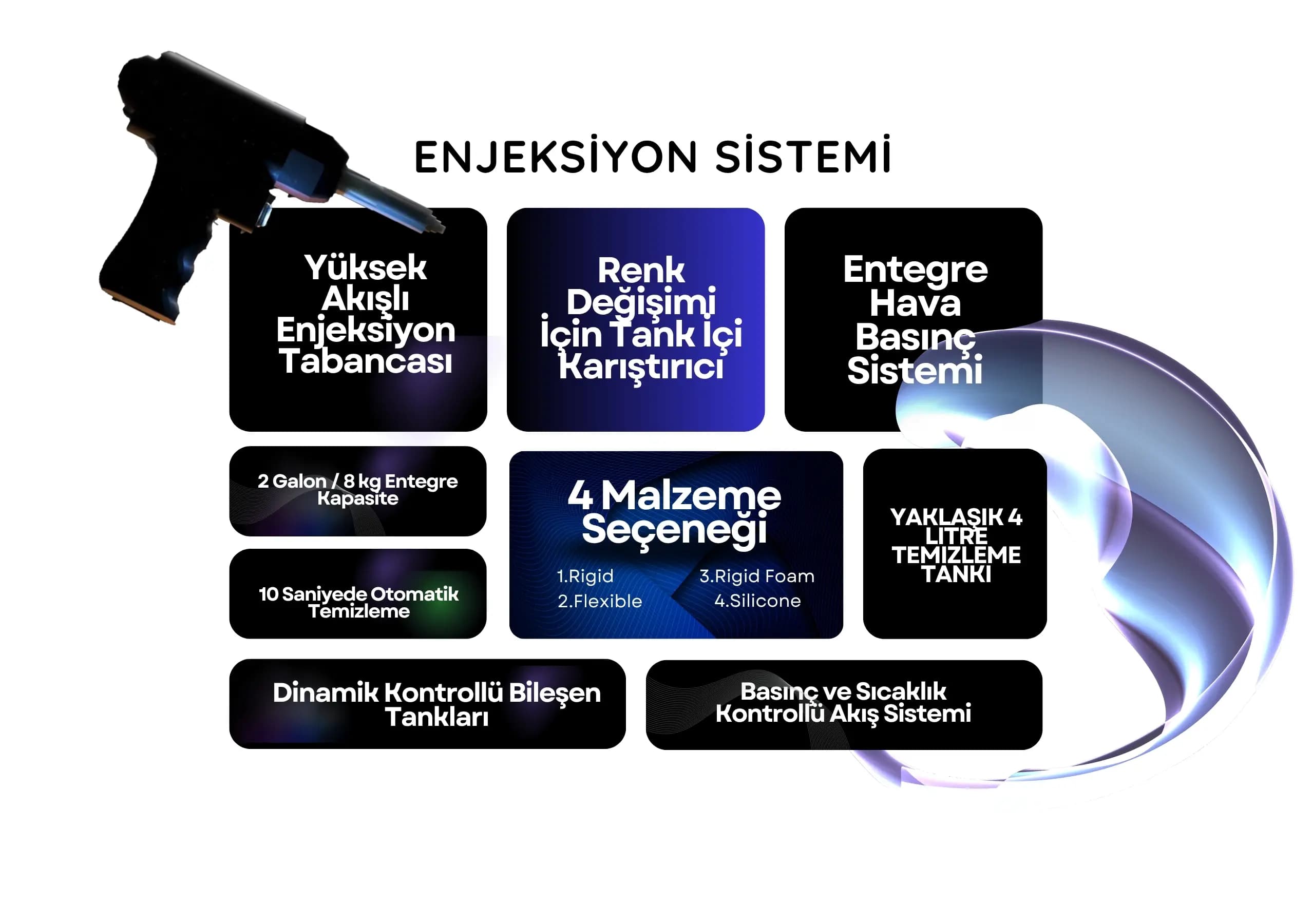

Injection System
- High-flow injection gun with pressure- and temperature-controlled flow
- 2-gallon / 8 kg integrated capacity with dynamically controlled component tanks
- In-tank mixer for color changes, integrated air-pressure system
- 10-second automatic cleaning, ~4-litre cleaning tank
- 4 material options: Rigid, Flexible, Rigid Foam, Silicone
Pre-order price: $4,399 (list price $5,499) — VAT-free export price.
Specifications
| Mix ratio (A:B) | Adjustable, up to 2:1 |
| Max. viscosity | 5,000 cP |
Pre-order Terms
- Estimated delivery: approximately 2 months from order.
- Pre-order units are built to order; the delivery date is an estimate and may shift with the production schedule.
- Once production of a pre-order unit has started, the order cannot be withdrawn under the made-to-order exception of the Turkish Distance Contracts Regulation (art. 15/1-a).
For technical questions and details, contact us or message us on WhatsApp.
Frequently Asked Questions
Which materials does Flovv work with?
Flovv works with two-component (A:B) reactive systems such as polyurethane and resin — flexible and rigid polyurethane and casting resins. (Silicone and epoxy capabilities are coming with the new Flovv Pro.)
How does it control the mix ratio?
The mix ratio is adjustable on the machine; the system meters A and B precisely at the set ratio and blends them homogeneously in a static mixing nozzle, giving far more consistent, bubble-free results than hand mixing. On this model the mix ratio is adjustable up to 2:1 and the maximum component viscosity is 5,000 cP.
Do I need a new nozzle for every cast?
No. You can run consecutive casts with the same nozzle. Replace it only when the mix inside it cures, when you switch material/color, or if it clogs.
What is the lead time?
This model is sold on pre-order; estimated delivery is about 2 months from the order.
Do you ship internationally?
Yes. We ship worldwide, including Europe and the US; international shipping is quoted based on your application.
Can I get a corporate invoice and a quote?
Yes. You can enter corporate invoice details at checkout, and request tailored pricing for bulk/corporate orders via the 'Get a Quote' form.
