1 / 4Devices
Flovv Industrial Reactive Injection System
SKU: NVT-DV-FLVI-01
- Technical summary
- Mix ratio (A:B):Adjustable, up to 3:1
- Max. viscosity:10,000 cP
- Capacity:50 kg (A+B)
- Delivery:Pre-order · ~5 months
List price: $10,826.64
$7,572.14
(VAT-exempt export price)
- Secure payment via PayTR
- Fast worldwide shipping
- Expert technical support
Pre-order item; delivery time is an estimate. Shipping is calculated at checkout based on your address.
Corporate purchase, custom application or bulk order? Talk to our engineer.
Which Flovv is right for you?
Capacity, materials and delivery for all four machines, side by side.
- Capacity
- Interchangeable tanks
- Materials
- PU rigid / flexible / foam, silicone
- Mix ratio (A:B)
- Adjustable, up to 2:1
- Max. viscosity
- 5,000 cP
- Pre-conditioning
- No
- Vacuum degassing
- No
- Integrated 3D printer
- No
- Thin-wall casting
- No
- Format
- Desktop
- Delivery
- In stock · 24h
- Price
- $1,499
- Capacity
- 2 gallons / 8 kg
- Materials
- PU rigid / flexible / foam, silicone + Epoxy
- Mix ratio (A:B)
- Adjustable, up to 10:1
- Max. viscosity
- 15,000 cP
- Pre-conditioning
- Yes
- Vacuum degassing
- Yes
- Integrated 3D printer
- No
- Thin-wall casting
- Yes
- Format
- Desktop
- Delivery
- Pre-order ~4 mo
- Price
- $4,399
- Capacity
- 2 gallons / 8 kg
- Materials
- PU rigid / flexible / foam, silicone
- Mix ratio (A:B)
- Adjustable, up to 2:1
- Max. viscosity
- 5,000 cP
- Pre-conditioning
- No
- Vacuum degassing
- No
- Integrated 3D printer
- Yes
- Thin-wall casting
- No
- Format
- Desktop
- Delivery
- Pre-order ~2 mo
- Price
- $4,399
- Capacity
- 50 kg (A+B)
- Materials
- PU rigid / flexible / foam, silicone + Epoxy
- Mix ratio (A:B)
- Adjustable, up to 3:1
- Max. viscosity
- 10,000 cP
- Pre-conditioning
- Yes
- Vacuum degassing
- Yes
- Integrated 3D printer
- No
- Thin-wall casting
- Yes
- Format
- Industrial
- Delivery
- Pre-order ~5 mo
- Price
- $7,572
| Model | Flovv: Injection System for 3D Printers | Flovv Pro Reactive Injection System | Flovv-e Reactive Injection System | Flovv Industrial Reactive Injection System |
|---|---|---|---|---|
| Capacity | Interchangeable tanks | 2 gallons / 8 kg | 2 gallons / 8 kg | 50 kg (A+B) |
| Materials | PU rigid / flexible / foam, silicone | PU rigid / flexible / foam, silicone + Epoxy | PU rigid / flexible / foam, silicone | PU rigid / flexible / foam, silicone + Epoxy |
| Mix ratio (A:B) | Adjustable, up to 2:1 | Adjustable, up to 10:1 | Adjustable, up to 2:1 | Adjustable, up to 3:1 |
| Max. viscosity | 5,000 cP | 15,000 cP | 5,000 cP | 10,000 cP |
| Pre-conditioning | No | Yes | No | Yes |
| Vacuum degassing | No | Yes | No | Yes |
| Integrated 3D printer | No | No | Yes | No |
| Thin-wall casting | No | Yes | No | Yes |
| Format | Desktop | Desktop | Desktop | Industrial |
| Delivery | In stock · 24h | Pre-order ~4 mo | Pre-order ~2 mo | Pre-order ~5 mo |
| Price | $1,499 | $4,399 | $4,399 | $7,572 |
Description

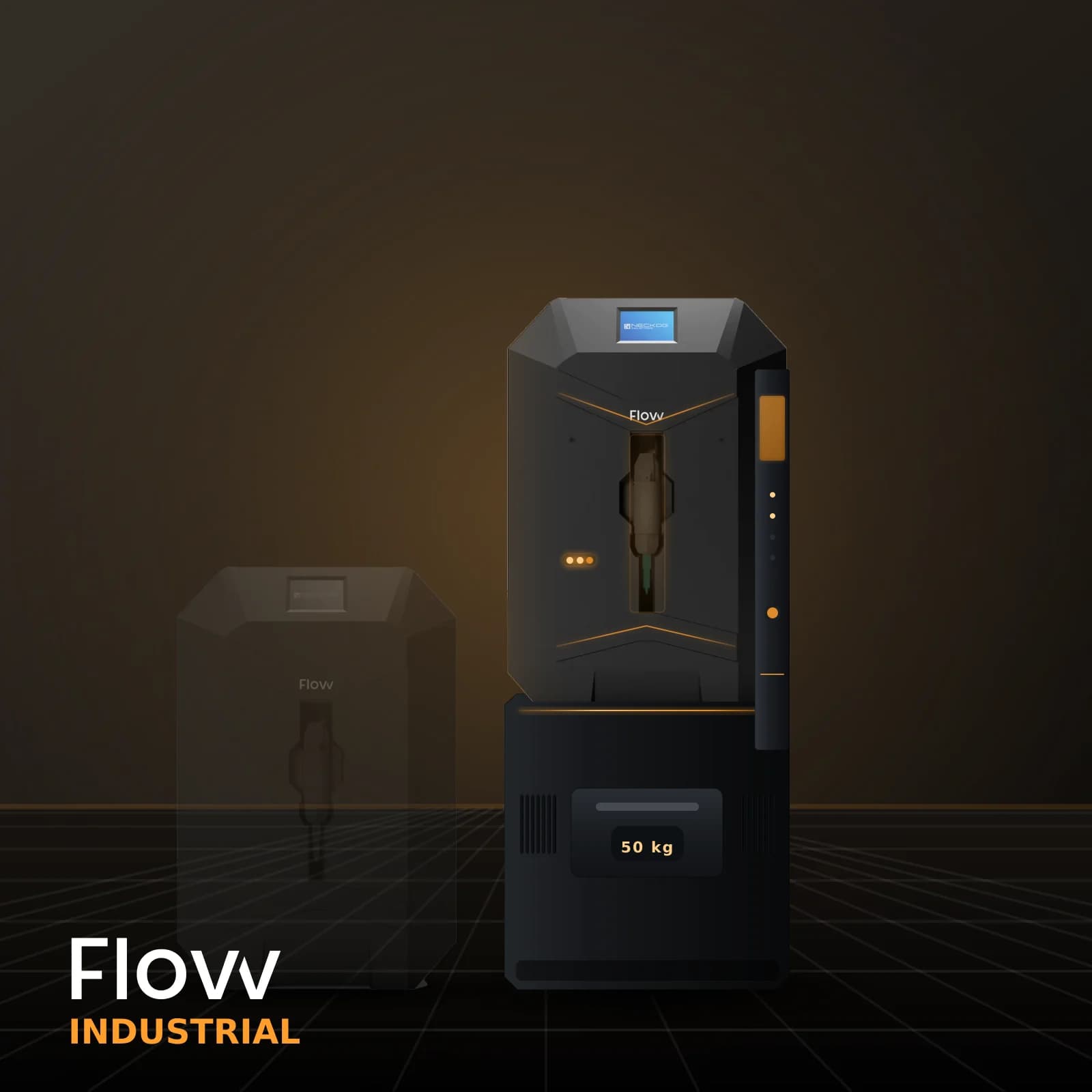

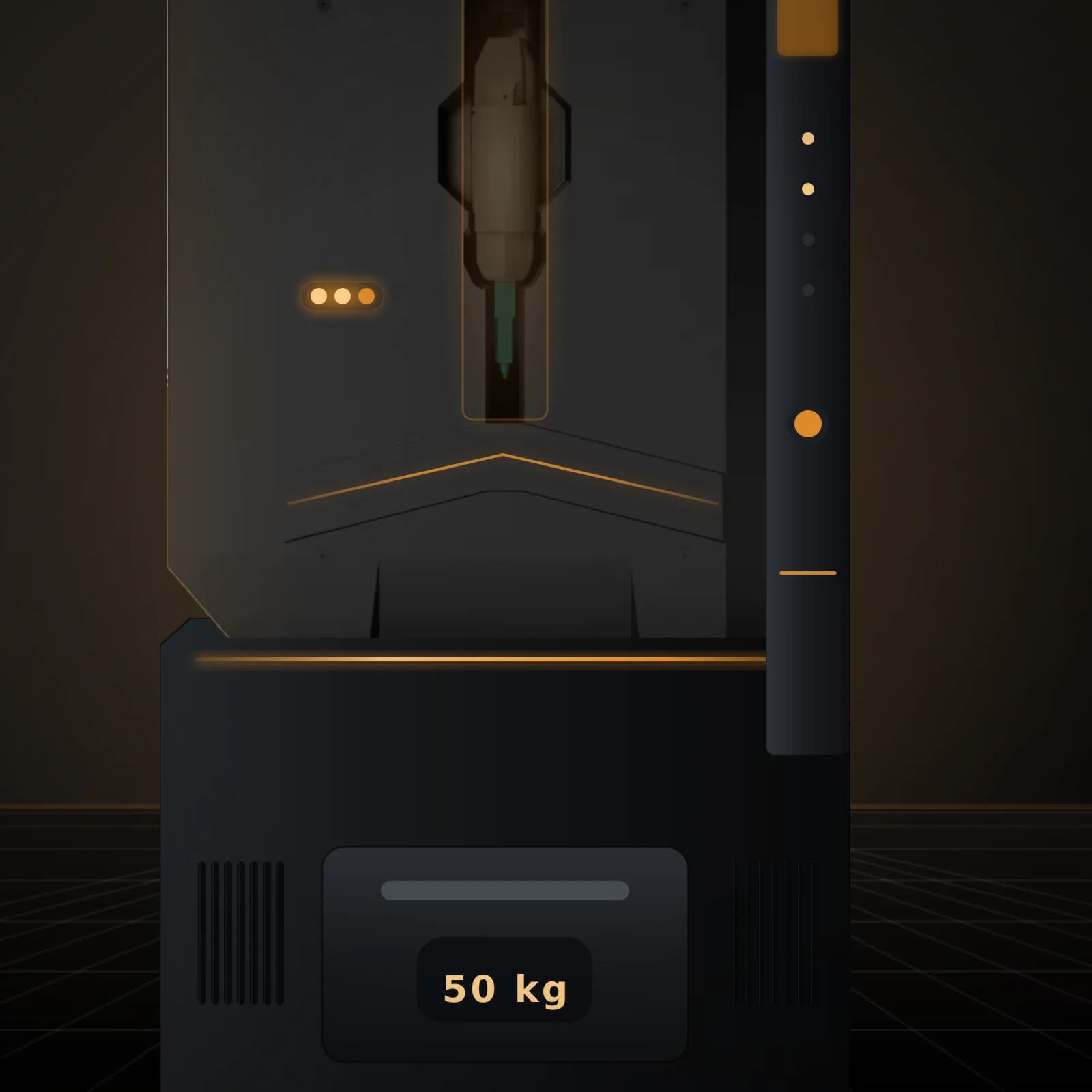

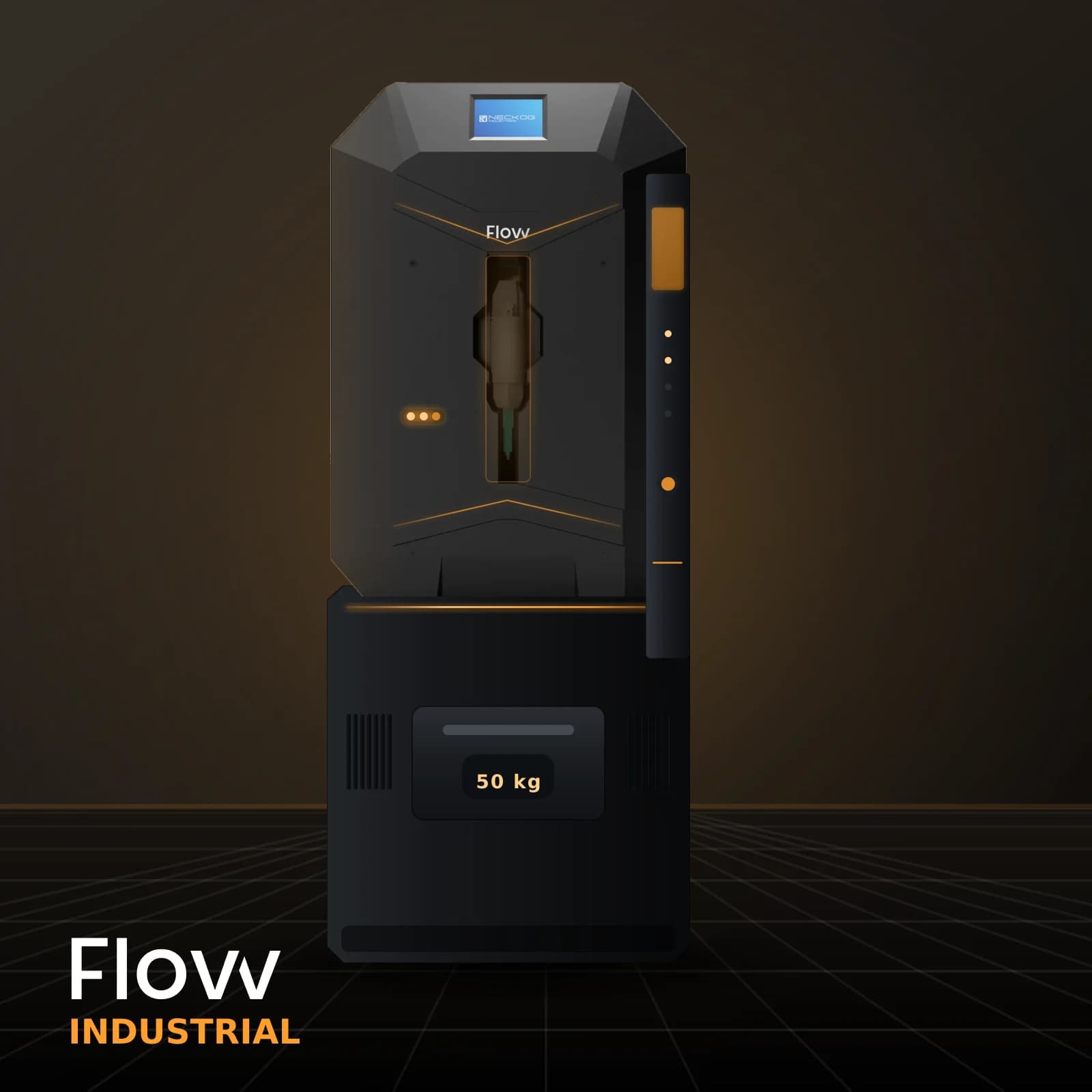

Flovv Industrial is the large-format member of the Flovv line: a floor-standing reactive injection system built for series production. It pairs the same pre-conditioning technology as Flovv Pro — heated, temperature-controlled A/B tanks, heated lines, vacuum degassing — with 50 kg of material capacity (A+B combined) and the flow rate large molds need.
How It Works
Material is brought to temperature in the tanks and degassed under vacuum, then carried at constant viscosity through heated lines to the mixing head and injected into the mold. The large tank capacity means run after run without refilling, and the higher flow rate fills high-volume molds before the material gels. It is built for small-batch series production and for parts that will not fit a desktop machine.
Highlights
- 50 kg material capacity (A+B combined) — uninterrupted casting through long production runs
- Pre-conditioning: heated, temperature-controlled tanks and feed lines with vacuum degassing
- High flow rate for large molds — high-volume molds fill within the pot life
- Floor-standing frame — a permanent workstation on the production floor
- Broad material range: rigid, flexible, rigid foam, silicone and epoxy systems
- Automatic cleaning and an in-tank mixer for material and colour changes
- Configured to your application: tank, head and automation options are specified per project
Specifications
| Material capacity | 50 kg (A+B combined) |
| Pre-conditioning | Heated, temperature-controlled tanks and lines |
| Degassing | In-tank vacuum degassing |
| Materials | Rigid, Flexible, Rigid Foam, Silicone, Epoxy |
| Format | Floor-standing |
| Use | Small-batch series production, large parts |
| Mix ratio (A:B) | Adjustable, up to 3:1 |
| Max. viscosity | 10,000 cP |
Pricing and configuration are quoted per project: capacity, head and automation options are set to your application.
Tell us about your application and we will come back with a configuration and a price: contact us or message us on WhatsApp.
Frequently Asked Questions
Which materials does Flovv work with?
Flovv works with two-component (A:B) reactive systems such as polyurethane and resin — flexible and rigid polyurethane and casting resins. (Silicone and epoxy capabilities are coming with the new Flovv Pro.)
How does it control the mix ratio?
The mix ratio is adjustable on the machine; the system meters A and B precisely at the set ratio and blends them homogeneously in a static mixing nozzle, giving far more consistent, bubble-free results than hand mixing. On this model the mix ratio is adjustable up to 3:1 and the maximum component viscosity is 10,000 cP.
Do I need a new nozzle for every cast?
No. You can run consecutive casts with the same nozzle. Replace it only when the mix inside it cures, when you switch material/color, or if it clogs.
What is the lead time?
This model is sold on pre-order; estimated delivery is about 5 months from the order.
Do you ship internationally?
Yes. We ship worldwide, including Europe and the US; international shipping is quoted based on your application.
Can I get a corporate invoice and a quote?
Yes. You can enter corporate invoice details at checkout, and request tailored pricing for bulk/corporate orders via the 'Get a Quote' form.
